Downloads From CtrlPrint

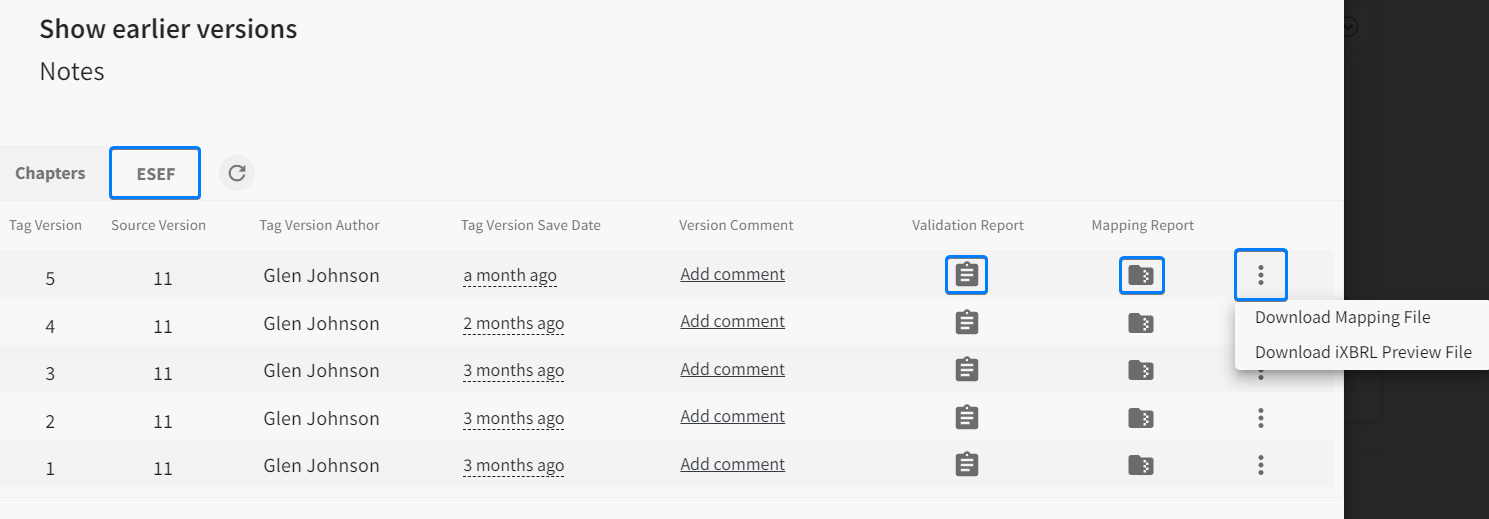

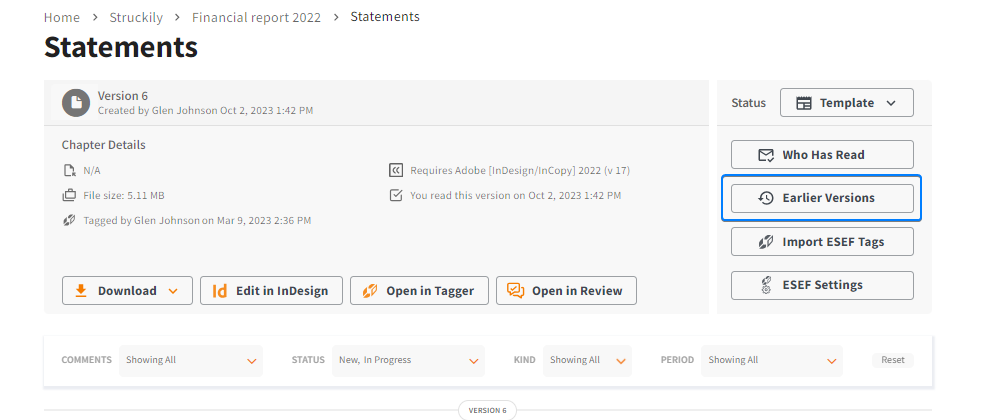

Besides creating an ESEF-report (see instructions here) you can download other reports and files on CtrlPrint if you navigate to a tagged chapter and click on "Earlier Versions".

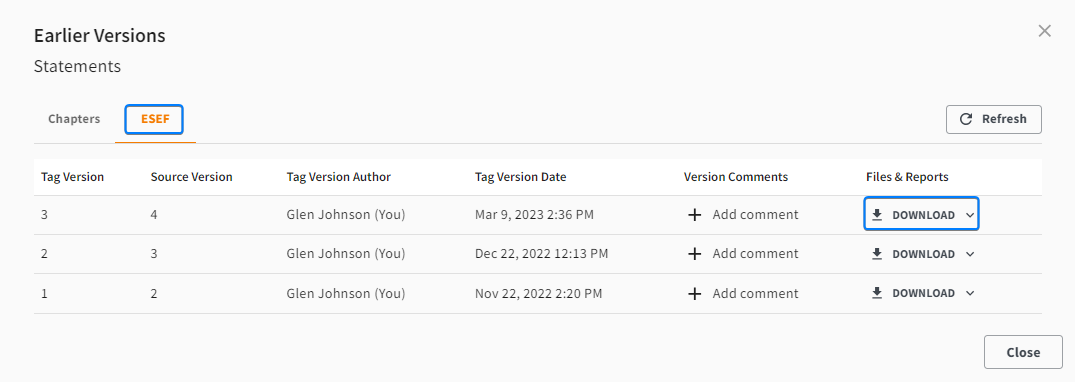

Select the ESEF tab, and then click on the Download menu for relevant version of your Tagging.

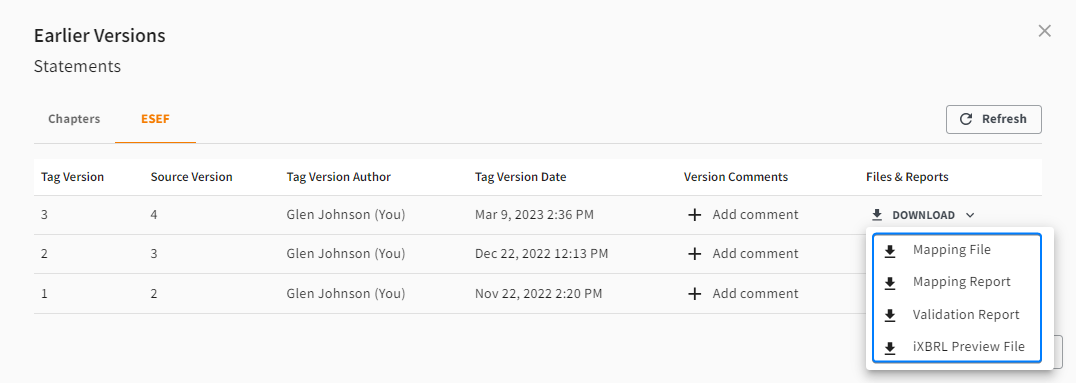

You will then be able to select the report you wish to download.
Mapping File
A mapping file contains information about your tags and where they are placed in your documents. The mapping file gets loaded and applied to your document when you open the document in the Tagger. On its own the Mapping File does not provide much context, but it is essential for troubleshooting together with a PDF or InDesign file.
Mapping Report
You will download a zip file which contains two Excel documents. Both documents will contain information about your tagged report, the document called WithUntaggedCells will also contain the data(cells) in your report where you have applied an abstract tag but no line item tag.
The Excel Mapping Report is divided into tabs based on the different statements (abstract tags) and Text Block Tags.
Statements/Abstract tags
Contains information about the tags such as:
- Technical(concept) name
- Label of the tag
- XBRL value of the tag (read more about this here)
- Start and end date for the tag (where applicable
- Which page (Chapter Name) the table is located on and much more.
Text Block Tags
This tab shows all the Textblock tags that has been applied to your report. Below is a selection of whats is included:
- Technical(concept) name
- The value (text) that has been tagged
- Which page it has been applied to (chapter name)
- In which Layer it has been tagged
- If a text tag has been tagged as a continuation it will also display in what order (ContinuationOrder) the value (text) has been tagged.
Validation Report
Downloads the Excel Validation Report for the specific chapter. Please note that this might differ from the consolidated Validation Report that can be found in the downloadable zip when creating the ESEF-report on CtrlPrint (since this one might include multiple tagged chapters). For more information on validation messages, please see this page.
iXBRL Preview File
Downloads the iXBRL Preview File (XHTML) of the specific chapter where you can view the tags you have applied (see the bottom section of this page).
Downloads From XBRL Tagger

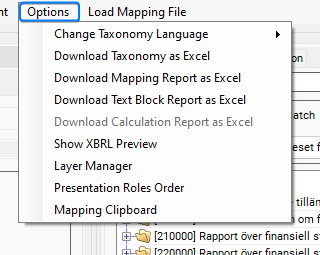

Once you have opened a document in the Tagger there are a number of reports that you can download under Options in the top menu.
Download Taxonomy as Excel
Downloads the chosen taxonomy in your projects settings as an Excel. In the tab PresentationLinkbase all tags are displayed.
Download Mapping Report as Excel

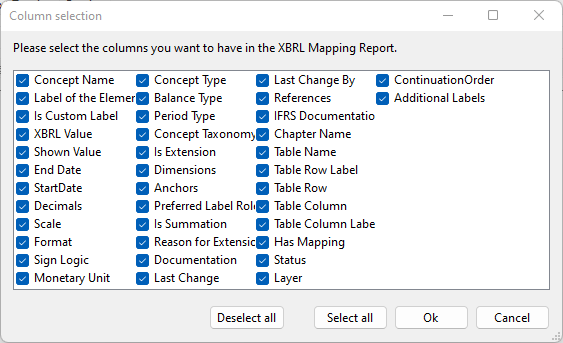

Gives you the option to select which information you want to include in your report.
After clicking Ok, two Excel documents will be downloaded. Both documents will contain information about your tagged report, the document called WithUntaggedCells will also contain the data(cells) in your report where you have applied an abstract tag but no line item tag.
The report will display information based on the column selection that has been made.
Download Text Block Report as Excel
The Text Block Report includes all Textblock tags that has been applied to your report.
Below is a selection of whats is included:
- Technical(concept) name
- The value (text) that has been tagged
- Which page it has been applied to (chapter name)
- In which Layer it has been tagged
- If a text tag has been tagged as a continuation it will also display in what order (ContinuationOrder) the value (text) has been tagged.
The Text Block Report also includes a tab called text block overview that displays the 252 mandatory text tags (see more information here) and if the tag is included in your report (found) or not (missing).
Download Calculation Report as Excel
The calculation report gives an overview over all calculations in the report. If the calculation is invalid you will get information about this (will be displayed in red and say Invalid). You can also review information on each tag that might affect the calculation.
